Custom 48V 36KW Telecom Power System with Outdoor Solar Cabinet | Professional Integrated Supplier

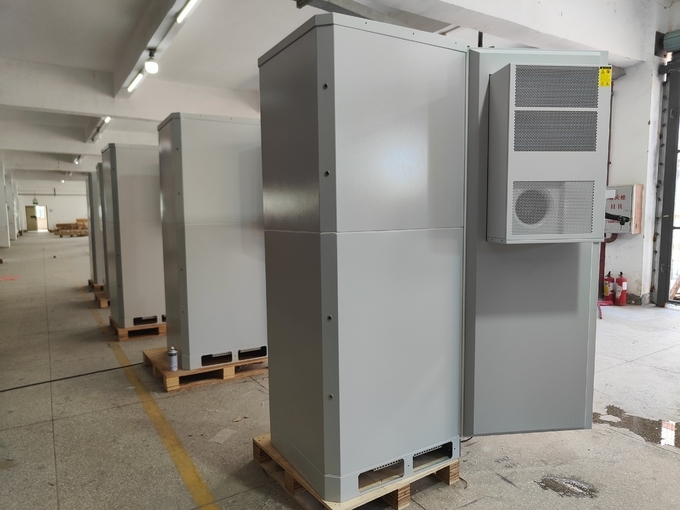

This 48V DC power system integrates dual energy inputs (mains electricity and solar energy) in a Type 3 protection class cabinet (2000H × 700W × 1050mmD), designed for outdoor and industrial environments.

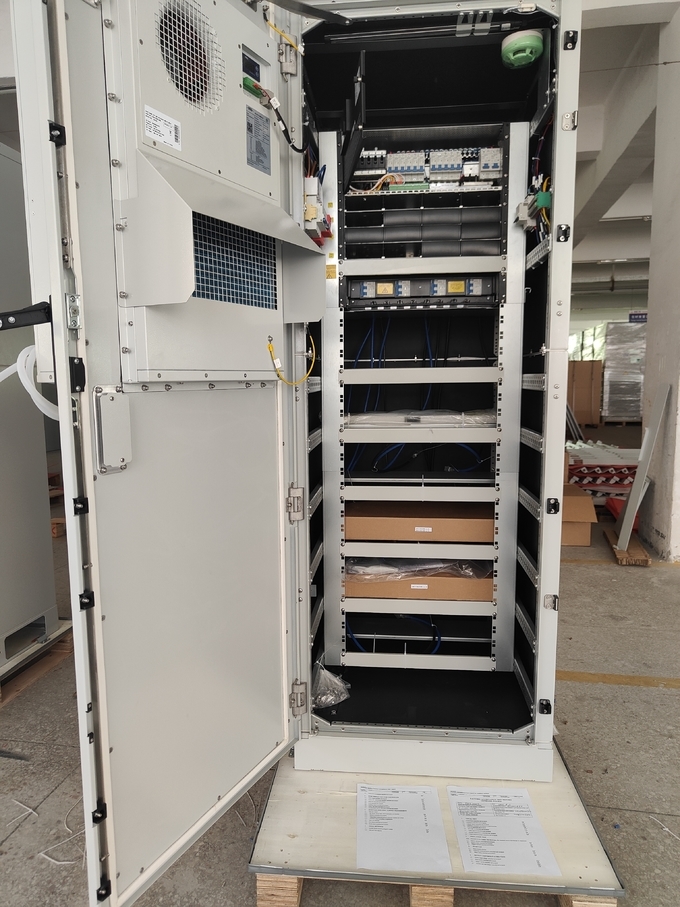

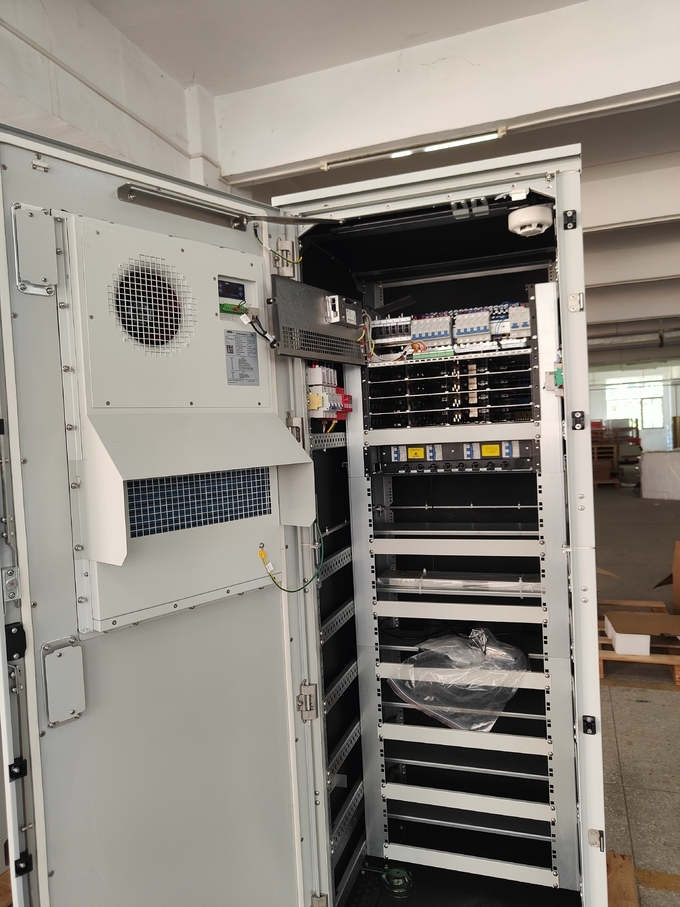

The cabinet features:

• 3000W 48V DC air conditioner for temperature regulation

• 4 units of 3U battery shelves for backup power storage

• Integrated environmental monitoring with smoke sensors, door sensors, and DC service lights

The power system includes:

• 80A/4P mains input with Class C 20/40KA SPD surge protection

• 36kW power core (3PR architecture, 12 slots for 3kW rectifier modules)

• Standard configuration: 5 Flatpack2 48/3000HE modules (15kW total)

• 12.8kW solar power core (1PR architecture, 4 slots for 3.2kW converter modules)

• 2 Flatpack2 48/3200HE modules (6.4kW total) with 2U photovoltaic interface

• 4U distribution unit for DC output

• Hot-swap expansion capability

Ideal for communication base stations, data centers, and other applications requiring high reliability and energy efficiency, with reduced operating costs through dual energy coordination.
